JUROPPart number: A450909410
Rotary vane vacuum pump JUROP PN 130, left-hand rotation, manual valve
- Overall dimensions, mm
- 776*405*550
- Flow rate, L/min
- 12900
JUROPPN vacuum pumps

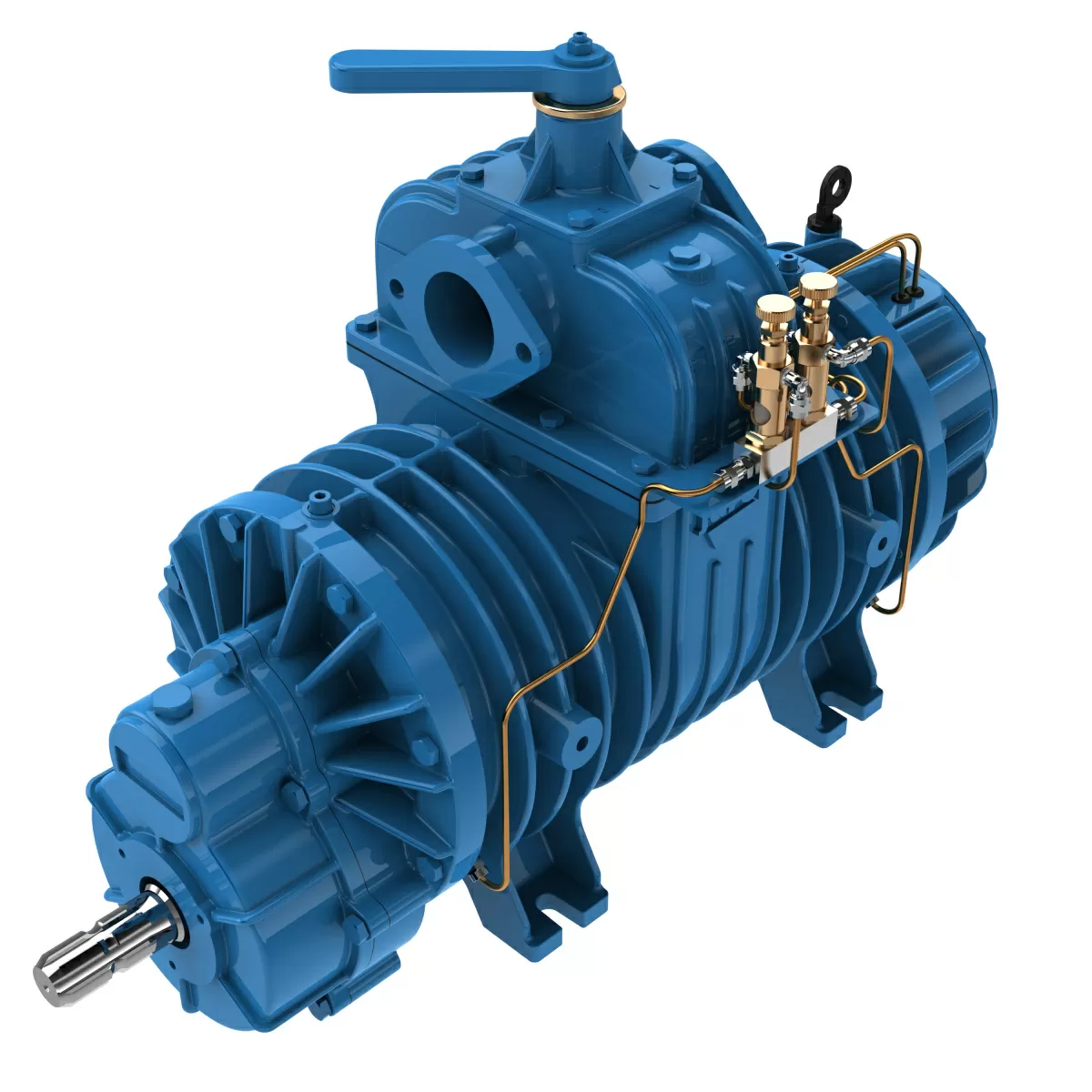

Rotary vane vacuum pump JUROP PN 33, 540 rpm, left-hand rotation, manual valve
Part number: A023203140
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 555*195*415 |
|---|---|
| Flow rate, L/min | 3600 |
| Air volume, m³ | 216 |
| Motor speed, rpm | 540 |
| Brand | JUROP |
| Weight, kg | 63 |
| Pressure, bar | 1.5 |
| Power, kW | 4.5 |
| Shaft type | Splined |
Description
Left-hand rotation, with gearbox for 540 rpm, equipped with a manual 4-way valve, output: splined shaft.
In the same category
JUROP
JUROPPart number: A203509410
Rotary vane vacuum pump JUROP PN 140, 1000 rpm, left-hand rotation, manual valve, gearbox
- Overall dimensions, mm
- 904х405х568
- Flow rate, L/min
- 13850
JUROPPart number: A020303110
Rotary vane vacuum pump JUROP PN 33, right-hand rotation, manual valve
- Overall dimensions, mm
- 546х215х415
- Flow rate, L/min
- 3600
JUROPPart number: A063213510
Rotary vane vacuum pump JUROP PN 106, 540 rpm, left-hand rotation, manual valve
- Overall dimensions, mm
- 802*370*517
- Flow rate, L/min
- 11000
