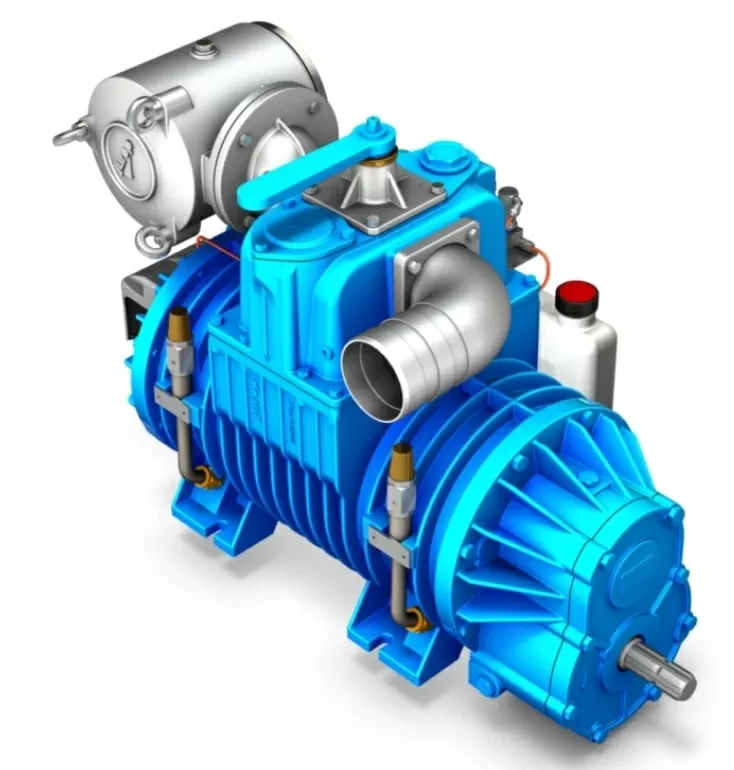

Rotary vane vacuum pump JUROP PN 130, 1000 rpm, left-hand rotation, manual valve
Part number: A453509410
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 874х405х550 |
|---|---|
| Flow rate, L/min | 12900 |
| Air volume, m³ | 774 |
| Motor speed, rpm | 1000 |
| Brand | JUROP |
| Weight, kg | 186 |
| Pressure, bar | 2 |
| Power, kW | 19 |
| Shaft type | Smooth keyed shaft |
Description
Left-hand rotation, with gearbox for 1 000 rpm, equipped with a hydraulic 4-way valve, output: keyed shaft. A version with an oil tank is also available.
