JUROPPart number: C565133052
Transfer pump JUROP VL 14 ATEX
- Brand
- JUROP
- Overall dimensions, mm
- 470*274*463
JUROPVL transfer pumps

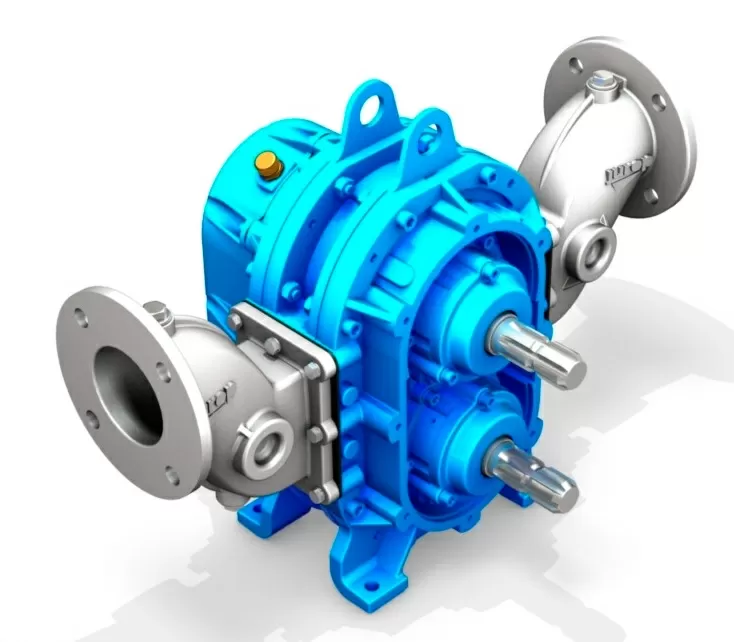

Transfer pump JUROP VL 70 G
Part number: C309233051
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 1094*432*636 |
|---|---|
| Flow rate, L/min | 6300 |
| Motor speed, rpm | 1000 |
| Weight, kg | 597 |
| Brand | JUROP |
| Pressure, bar | 5 |
| Power, kW | 88 |
Description
Shafts coated with nitrile butadiene rubber (NBR) Without pipe connectors Without motor Versions are available with Viton or polyurethane lobe coatings, or a ceramic coating on the chamber and rotor lobes. The hydraulic motor is supplied separately. Version with reinforced gearbox
