JUROPPart number: C565133052
Transfer pump JUROP VL 14 ATEX
- Brand
- JUROP
- Overall dimensions, mm
- 470*274*463
JUROPVL transfer pumps

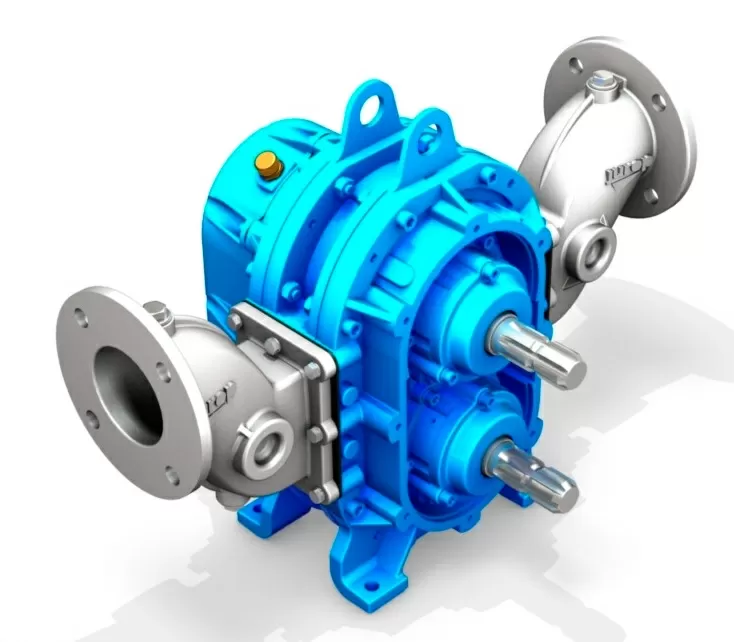

Transfer pump JUROP VL 40
Part number: C555034050
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 747*274*463 |
|---|---|
| Flow rate, L/min | 4000 |
| Motor speed, rpm | 540 |
| Weight, kg | 170 |
| Brand | JUROP |
| Pressure, bar | 3 |
| Power, kW | 42 |
Description
Shafts coated with nitrile butadiene rubber (NBR) Without pipe connectors Without motor Versions are available with Viton or polyurethane lobe coatings, or a ceramic coating on the chamber and rotor lobes. The hydraulic drive is supplied separately.
In the same category
JUROP
JUROPPart number: C525133051
Transfer pump JUROP VL 14
- Brand
- JUROP
- Overall dimensions, mm
- 470*274*463
JUROPPart number: C305233051
Transfer pump JUROP VL 70 complete with pipe connectors (pressure 1,2 bar)
- Brand
- JUROP
- Overall dimensions, mm
- 841*432*636
JUROPPart number: C315233051
Transfer pump JUROP VL 140
- Brand
- JUROP
- Overall dimensions, mm
- 1076*432*636
