JUROPVL transfer pumps

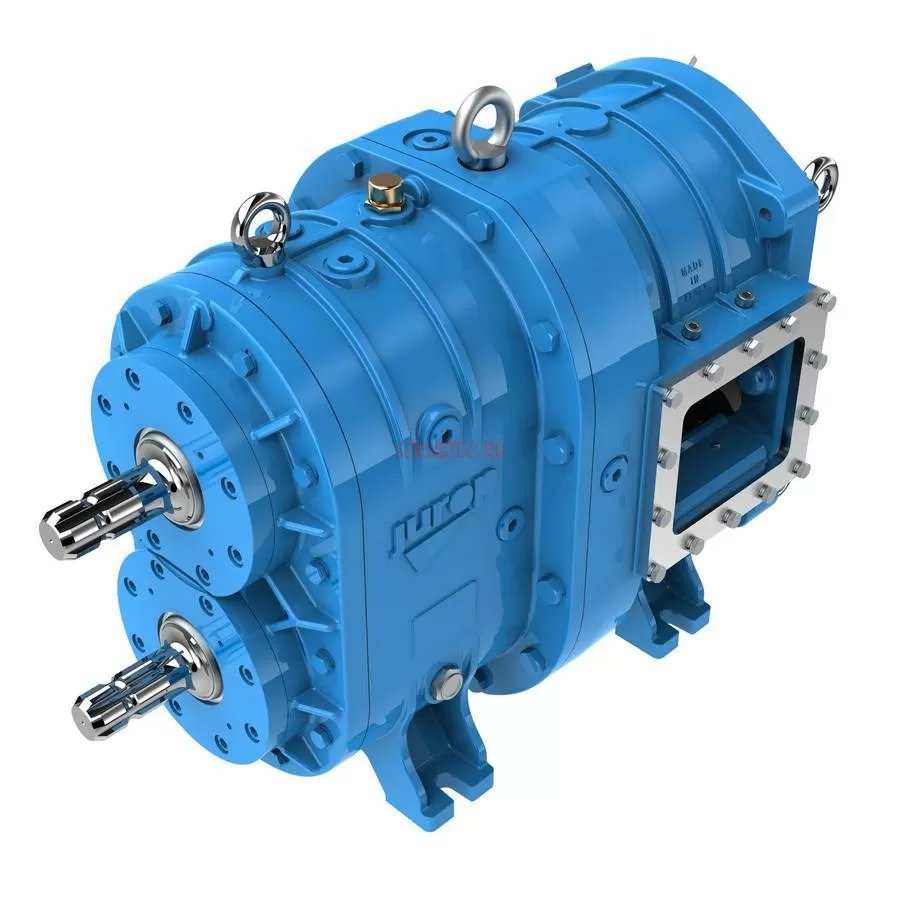

Transfer pump JUROP VL 140 G
Part number: C319233051
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 1329*432*636 |
|---|---|
| Flow rate, L/min | 12600 |
| Motor speed, rpm | 1000 |
| Weight, kg | 731 |
| Brand | JUROP |
| Pressure, bar | 3 |
| Power, kW | 130 |
Description
Shafts coated with nitrile butadiene rubber (NBR) Without pipe connectors Without motor Version with reinforced gearbox A version with a pneumatically or hydraulically controlled 3-way valve is available. Versions are also available with Viton or polyurethane shaft coatings, or a ceramic coating on the shafts and working chamber. The hydraulic motor is supplied separately.
