JUROPPart number: A470909440
Rotary vane vacuum pump JUROP RV 520, left-hand rotation, manual valve
- Overall dimensions, mm
- 975*438,5*598
- Flow rate, L/min
- 14700
JUROPRV / RVC vacuum pumps

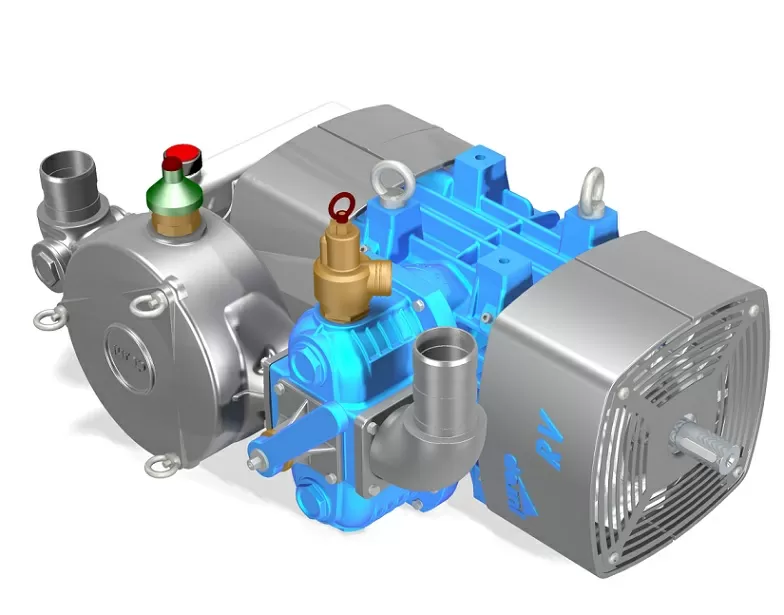

Vacuum pump JUROP RVC 360, left-hand rotation, manual valve
Part number: A600918416
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 906*617*370 |
|---|---|
| Flow rate, L/min | 10200 |
| Motor speed, rpm | 1300 |
| Weight, kg | 176 |
| Brand | JUROP |
| Pressure, bar | 2 |
| Power, kW | 15 |
| Shaft type | Smooth keyed shaft |
Description
Left-hand rotation, smooth keyed shaft, direct drive. Equipped with a manual valve.
