JUROPPart number: G437209100
Vacuum pump JUROP DL 150, 1000 rpm, left-hand rotation, manual valve, smooth shaft
- Overall dimensions, mm
- 626*482*645
- Flow rate, L/min
- 15000
JUROPDL rotary vacuum pumps

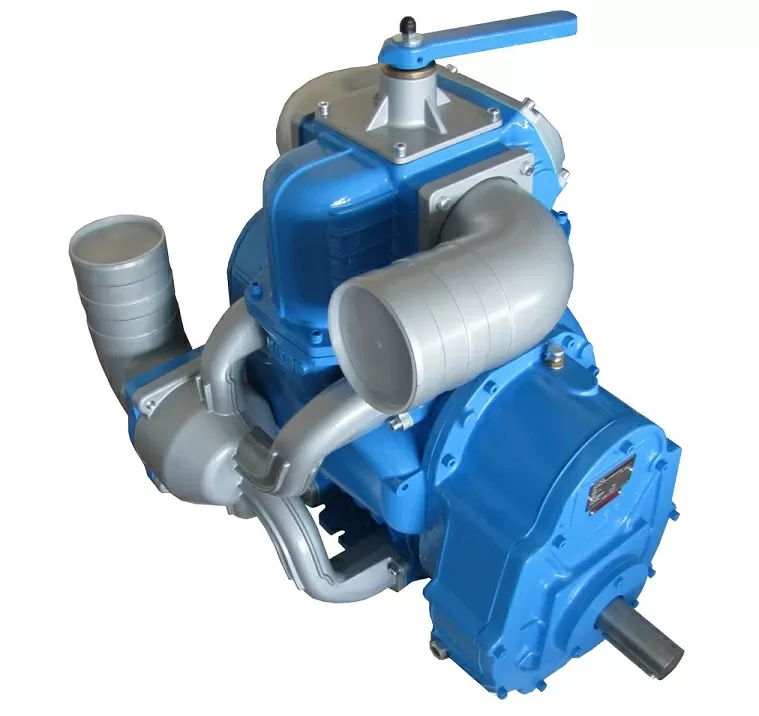

Vacuum pump JUROP DL 75 HDR, left-hand rotation, manual valve
Part number on request
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 740*415*577 |
|---|---|
| Flow rate, L/min | 8050 |
| Motor speed, rpm | 2500 |
| Weight, kg | 190 |
| Brand | JUROP |
| In the box | 1 |
| Pressure, bar | 2 |
| Power, kW | 12.5 |
Description
Left-hand rotation, hydraulic-drive version. manual valve version
