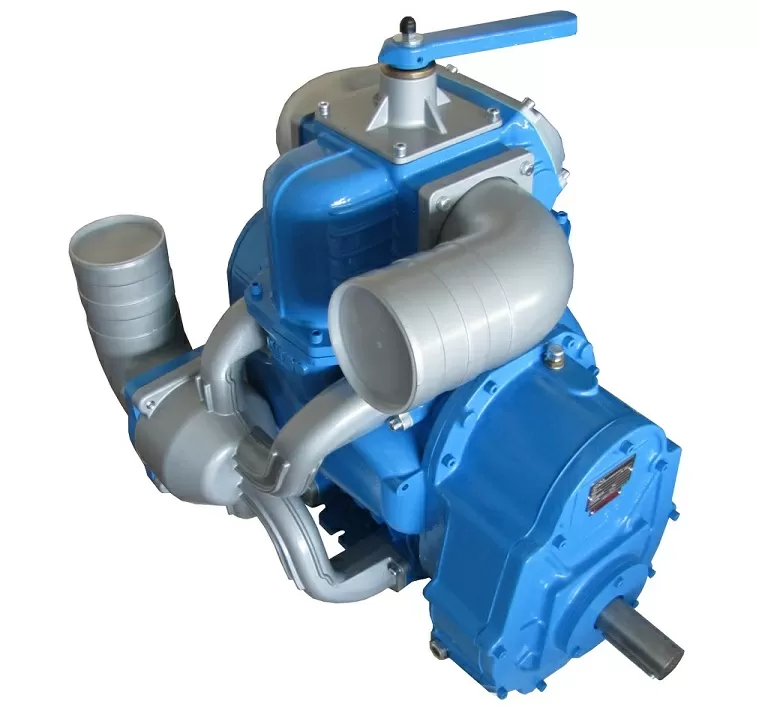

Vacuum pump JUROP DL 180, 1000 rpm, right-hand rotation, manual valve, smooth shaft
Part number: N417509100
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 626*482*645 |
|---|---|
| Flow rate, L/min | 17600 |
| Air volume, m³ | 1056 |
| Motor speed, rpm | 1000 |
| Brand | JUROP |
| In the box | 1 |
| Weight, kg | 188 |
| Pressure, bar | 2 |
| Voltage, V | 380 |
| Power, kW | 26 |
| Shaft type | Smooth keyed shaft |
Description
JUROP DL 180 is a positive-displacement vacuum pump for municipal applications.
It has a non-return valve in the suction line and an unlubricated pumping chamber, so it produces no oil mist. With a silencer, the stated noise level is no more than 77 dB.
Versions: SX — counterclockwise rotation; DX — clockwise rotation; PNU — pneumatic valve version.
