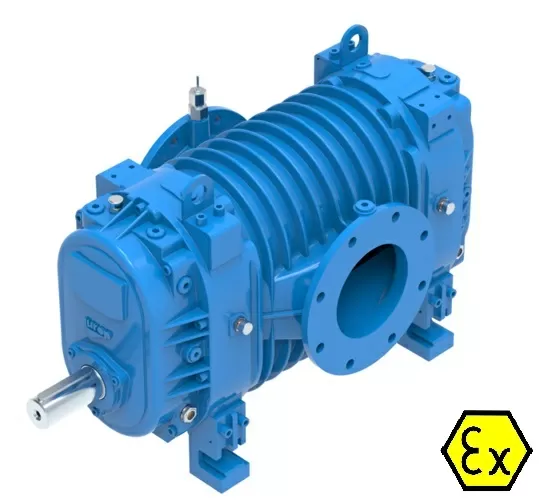

Blower JUROP CT 105 ATEX, 1500 rpm, left-hand rotation, smooth shaft
Part number on request
Price, availability and configuration are confirmed on request.
Specifications apply to the listed version. Confirm the parameters and compatibility before ordering.
Technical specifications
| Overall dimensions, mm | 680*300*373 |
|---|---|
| Flow rate, L/min | 18200 |
| Motor speed, rpm | 1500 |
| Weight, kg | 168 |
| Brand | JUROP |
| Pressure, bar | 2.1 |
| Power, kW | 36 |
| Shaft type | Smooth keyed shaft |
Description
Compressor with gearbox, counterclockwise rotation, horizontal ports, shaft at the bottom. Explosion-protected specification. For other configurations, consult the reference guide in the series description. For this version, the hydraulic drive is supplied separately.
